Magnetic suction lamp

Currency

Print Export

AED

VG-MS07 Series

Voltage: DC48V
Power: 7W
CRI: ≥90
Beam Angle: 15~60°
LED Type: COB
Surge: 1.5KV
Material: Aluminum+PC
Body Size:Ф60x200mm

Quotation Print

型号	参数	报价表
Model NO	Parameter	Quotation

Product Advantages


Promotion Introduction

No.	Product name	Product voltage	Product feature	Product combination	Use environment	Lighting Features	Matching products	Sales Highlights	Product Features
1	VG-MS0110L 10W BK 4000K	220V to 48V	Anti-glare	Various combinations: 0-10V thyristor dimming, DALI system dimming.	Indoor area aisle, indoor scene collocation.	Spot light, anti-glare and various combination.	Use with anti-glare grille and anti-glare down light.	1、With different lighting modules, you can freely match the scene application combination effect.	Easy to install and disassemble, low-voltage 48V track is safe, and the double lock of the lamp is stable.
2	VG-MS0110L 10W BK 3000K
3	VG-MS0118L 18W BK 4000K
4	VG-MS0118L 18W BK 3000K
5	VG-MS0306L 6W BK 4000K							2、With different wattage lighting modules, you can freely adjust the brightness of the scene lighting.
6	VG-MS0312L 12W BK 4000K

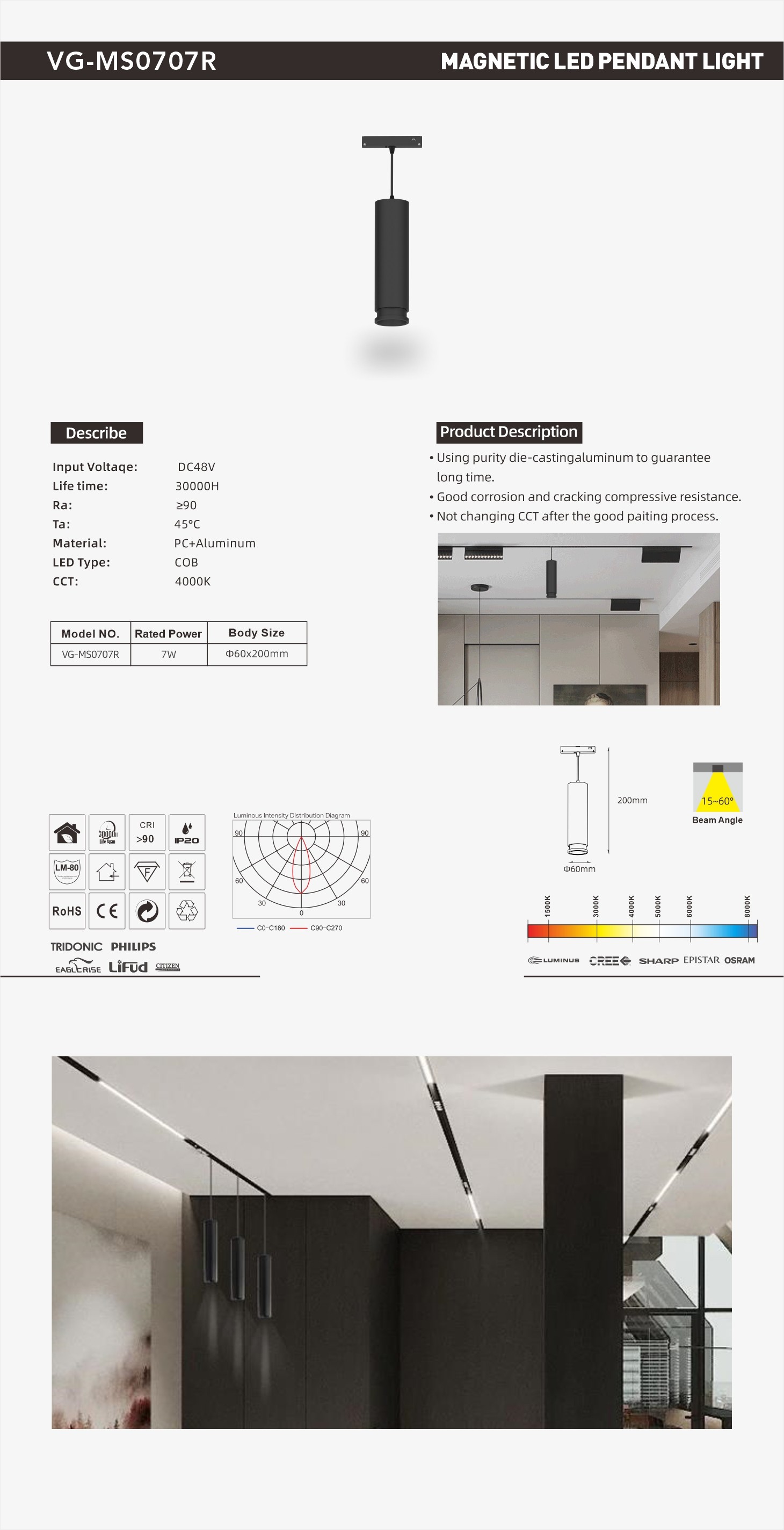

7	VG-MS0507R 7W BK 4000K
8	VG-MS0512R 12W BK 4000K
9	VG-MS0609L 9W BK 4000K							3、Lamp module application selection, free choice to adapt to the scene matching lamps.
10	VG-MS0618L 18W BK 4000K
11	VG-MS0707R 7W BK 4000K
