V. Max is committed to maximizing the value of lighting and is willing to promote common development and share achievements with peers.
AED
Madein China

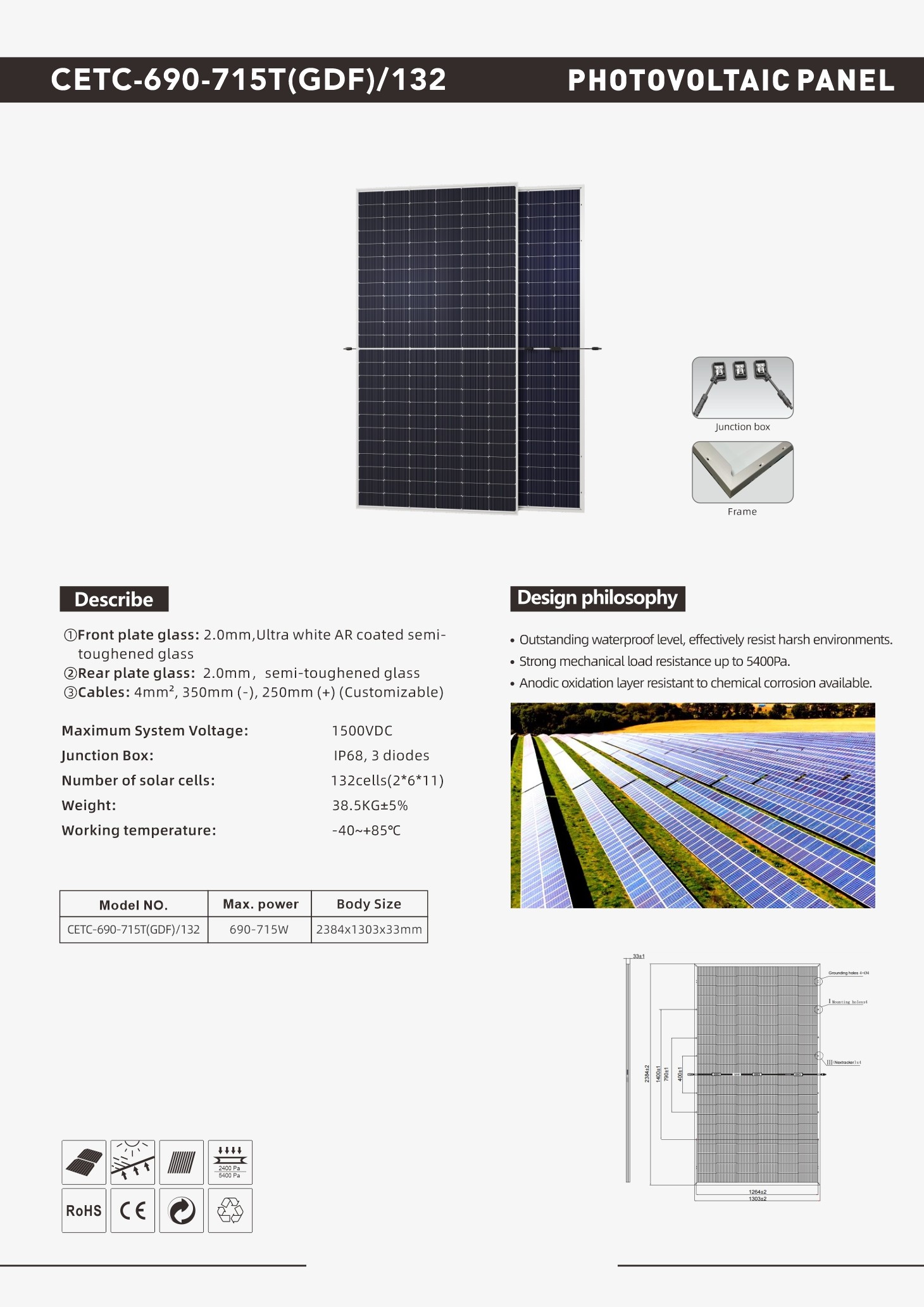

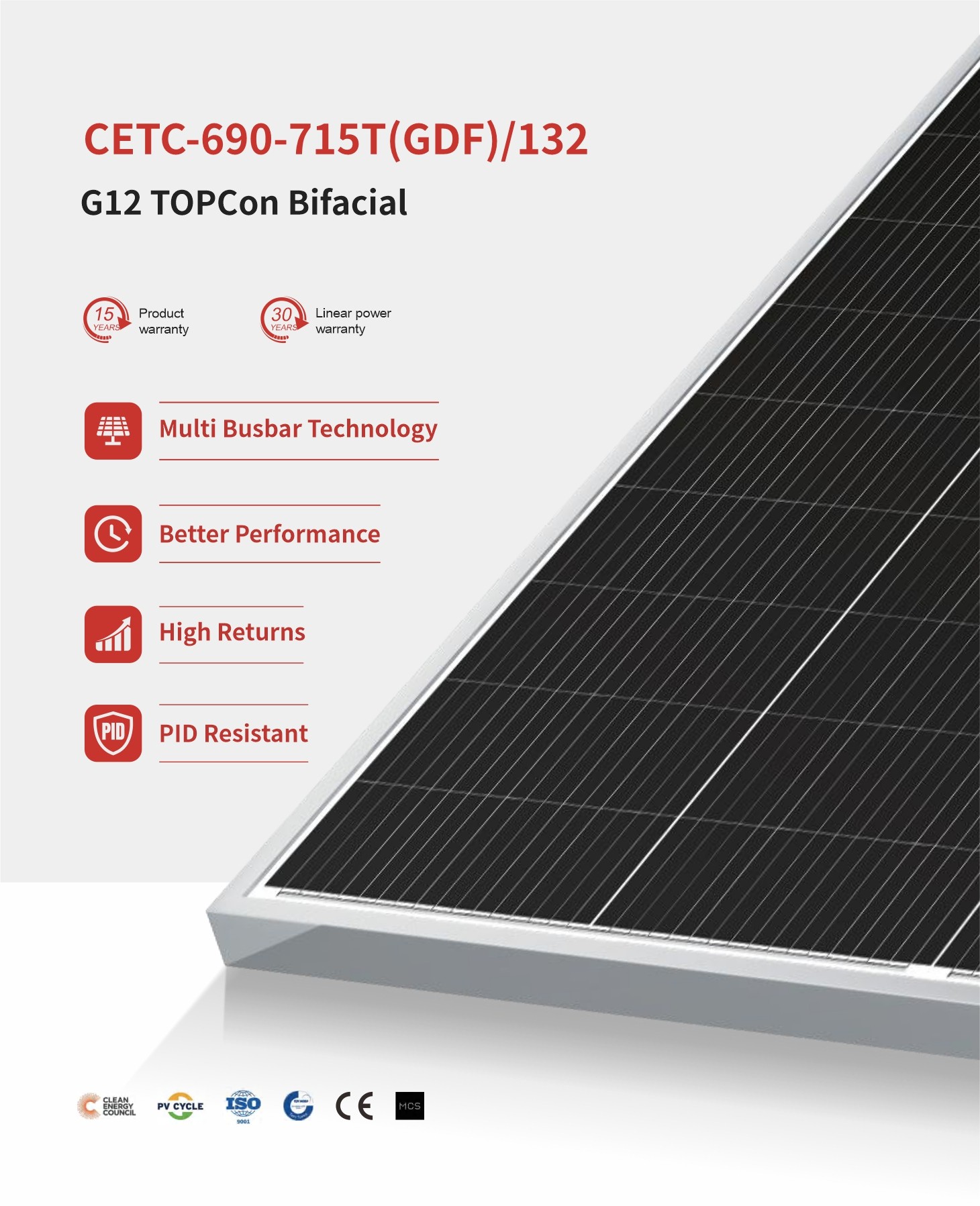

Model No.：CETC-690-715T(GDF)/132
Power Range：690-715W
Module size：2384*1303*33mm
Number of solar cells：132Cells（2*6*11）
Weight：38.5KG±5%
Junction Box：IP68, 3 diodes
Cables：4mm²,350mm (-), 250mm(+) (Customizable)
Front plate glass：2.0mm,Ultra white AR coated semi-toughened glass
Rear plate glass：2.0mm，semi-toughened glass
Working temperature：-40~+85℃
Product Advantages
Installation matters
Product photography
PNG pictures

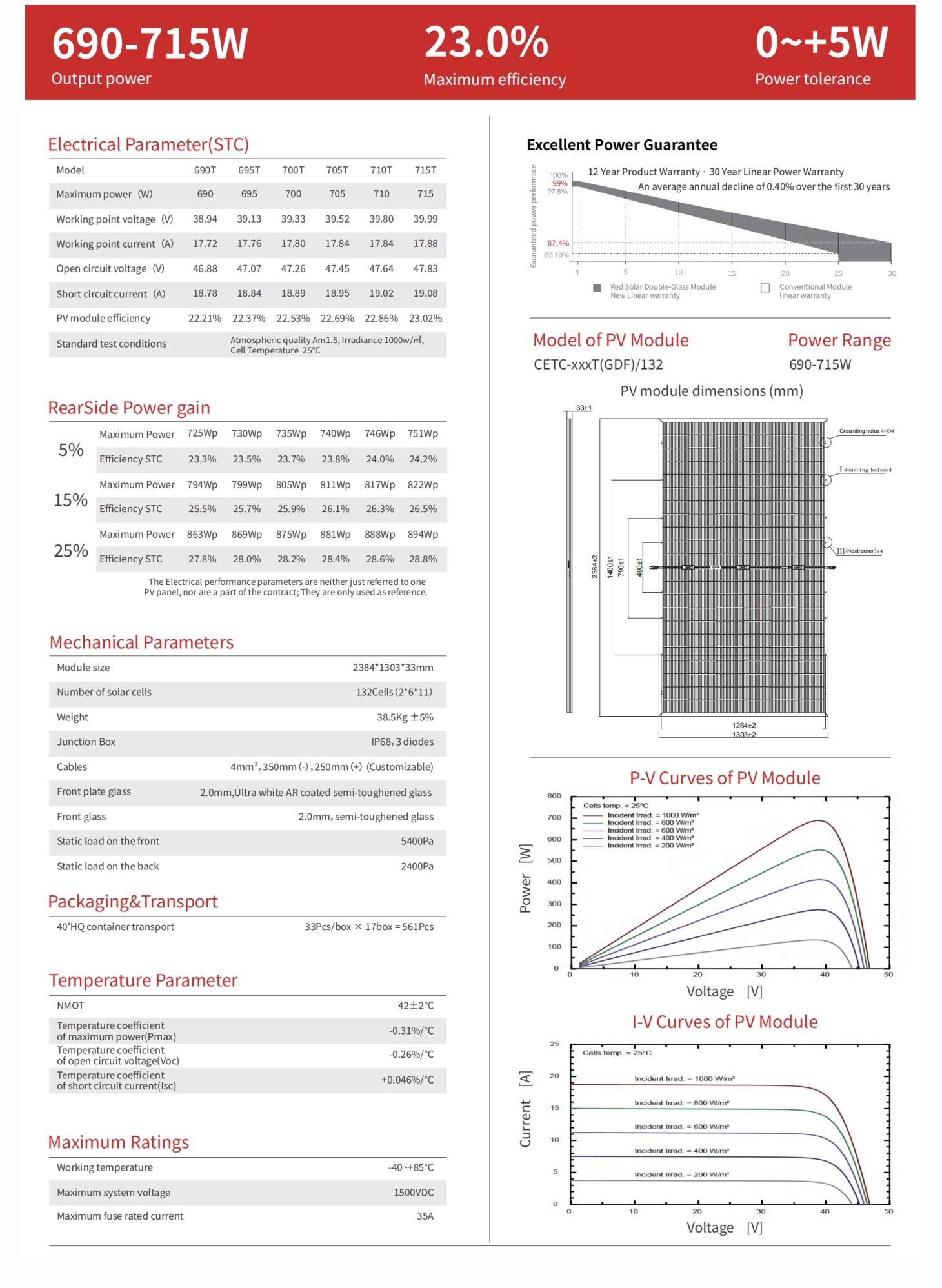

Specification
Live video
3D video
gantt chart
IES file
The packaging file
Test report
Certificate report
3D Model
Display Board
