Small Panel Light

Currency

Print Export

AED

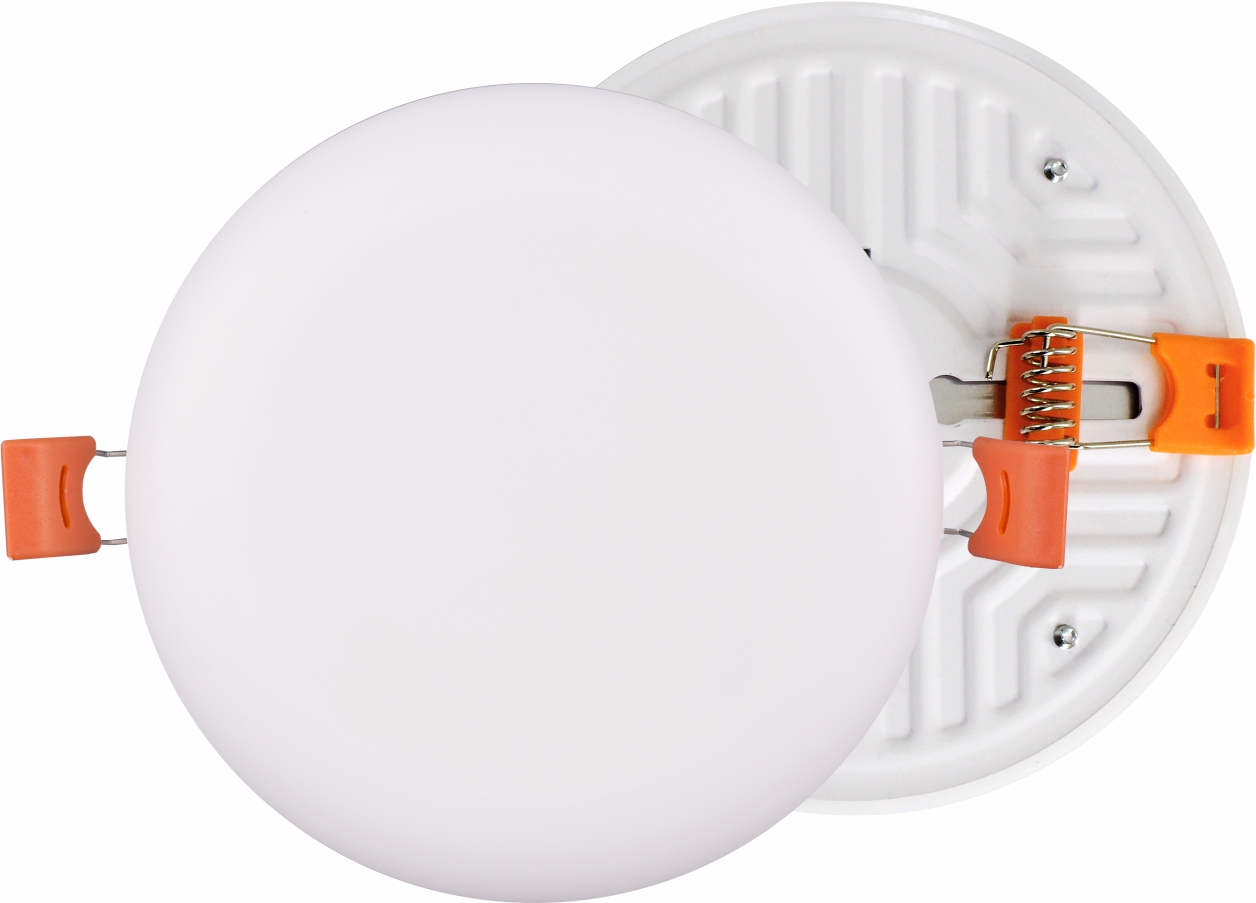

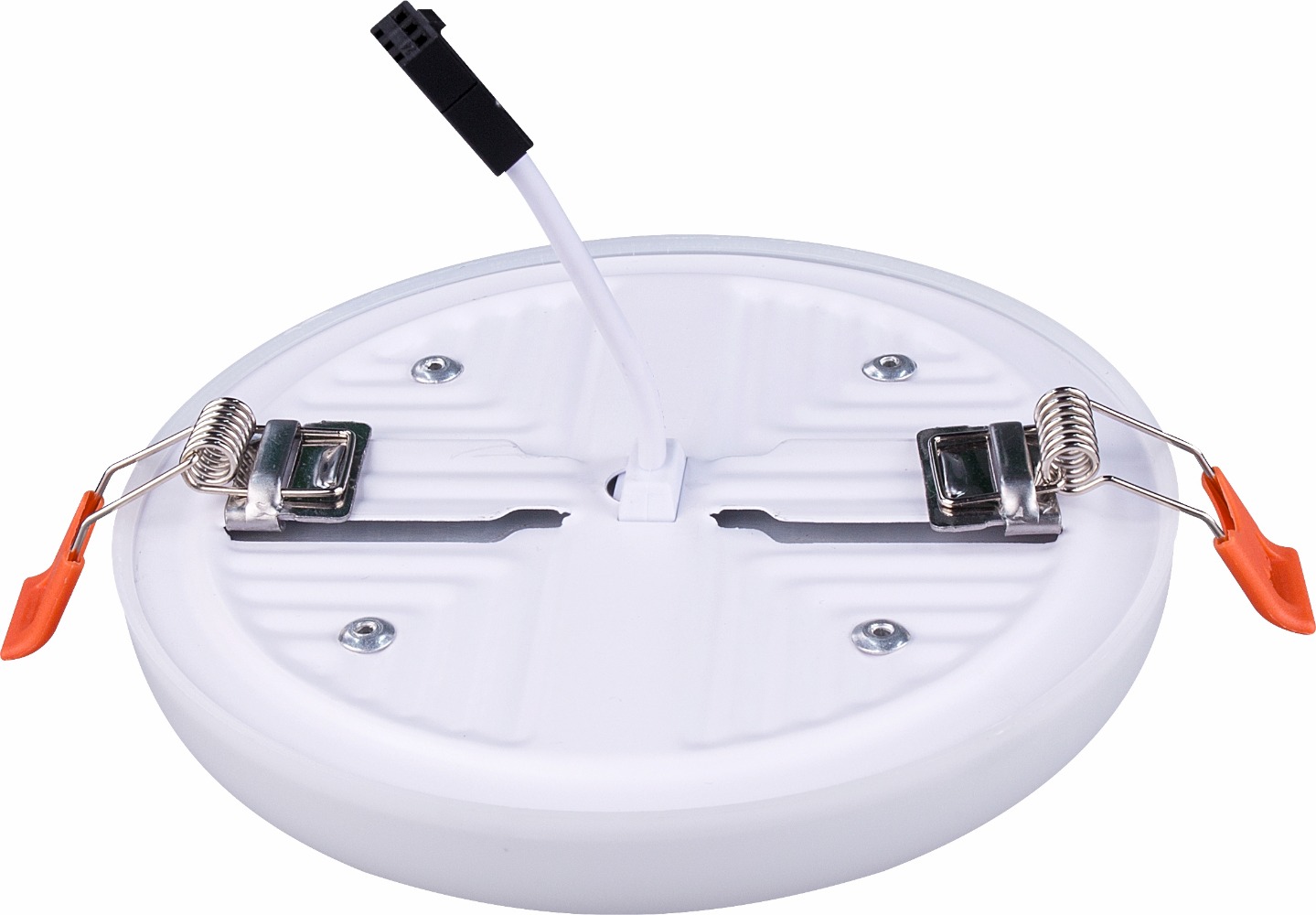

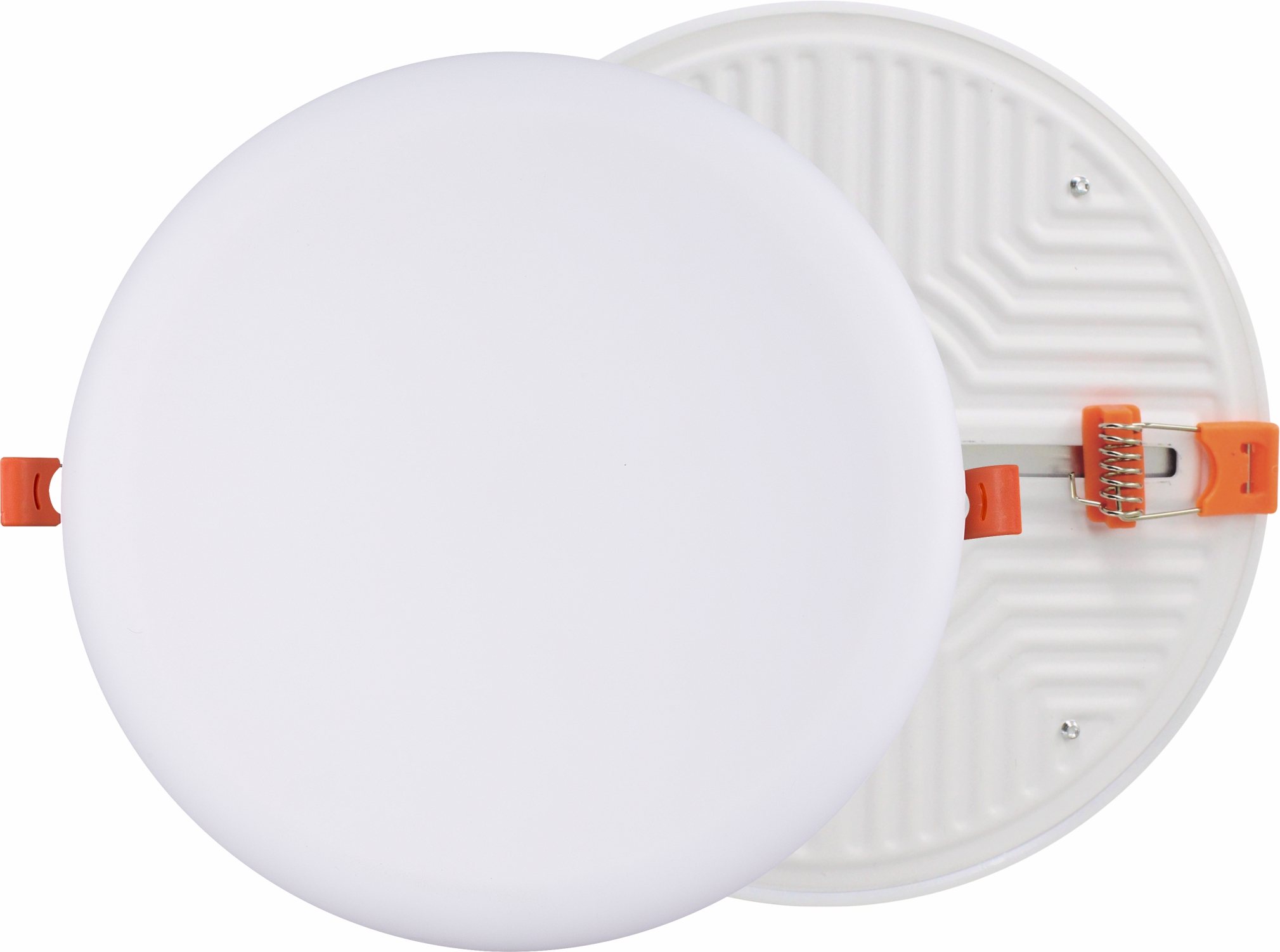

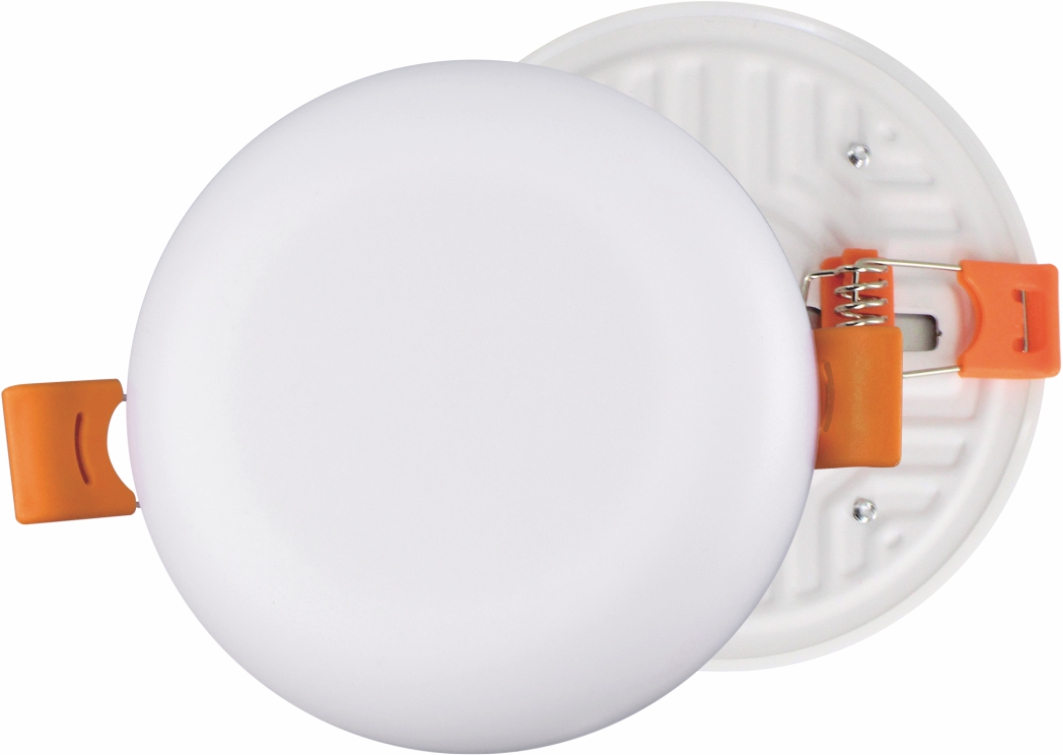

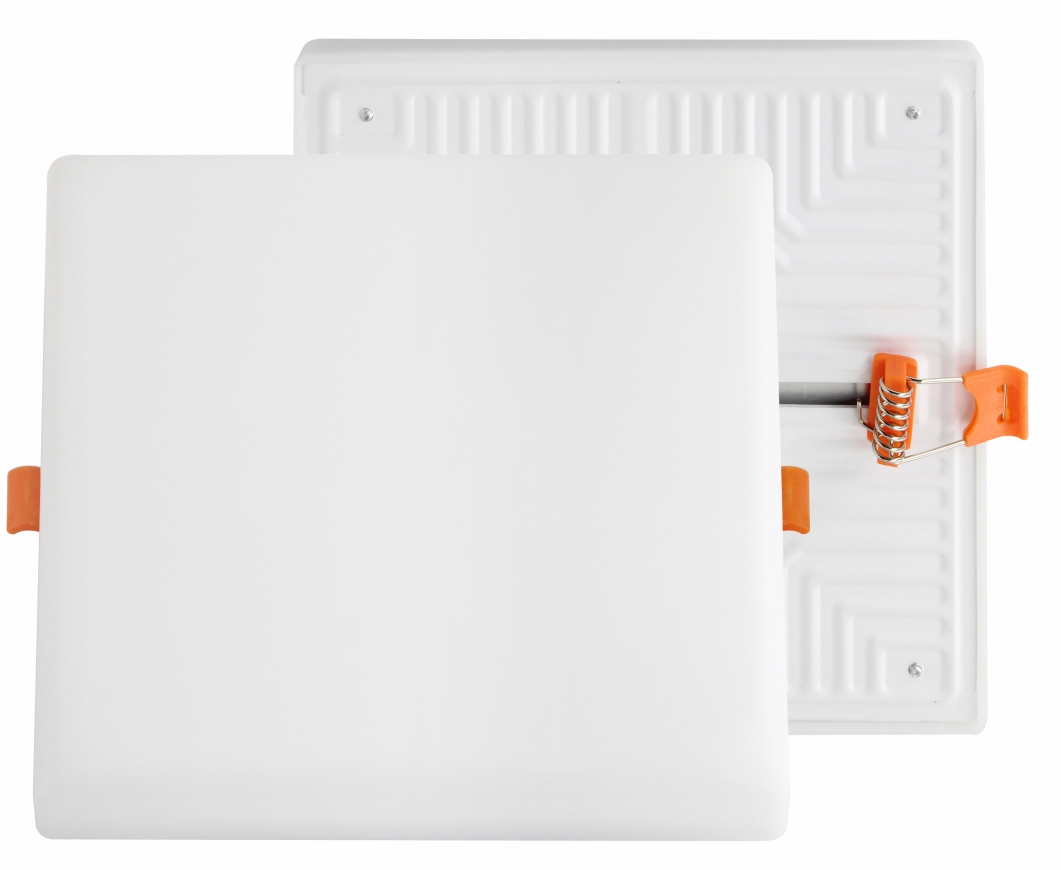

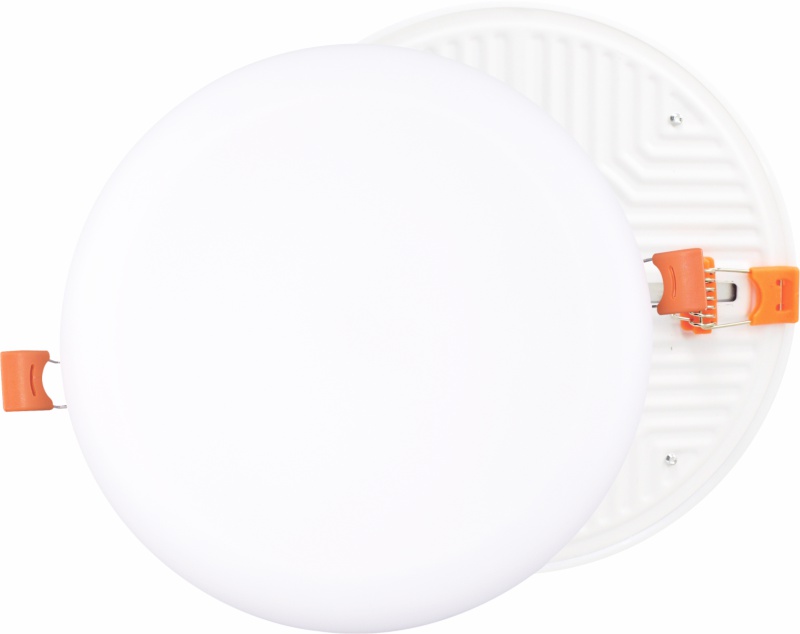

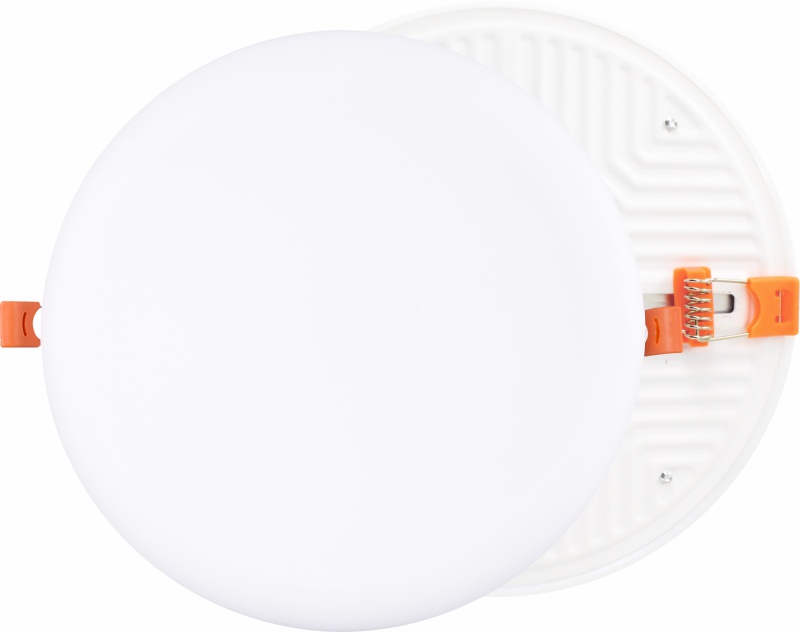

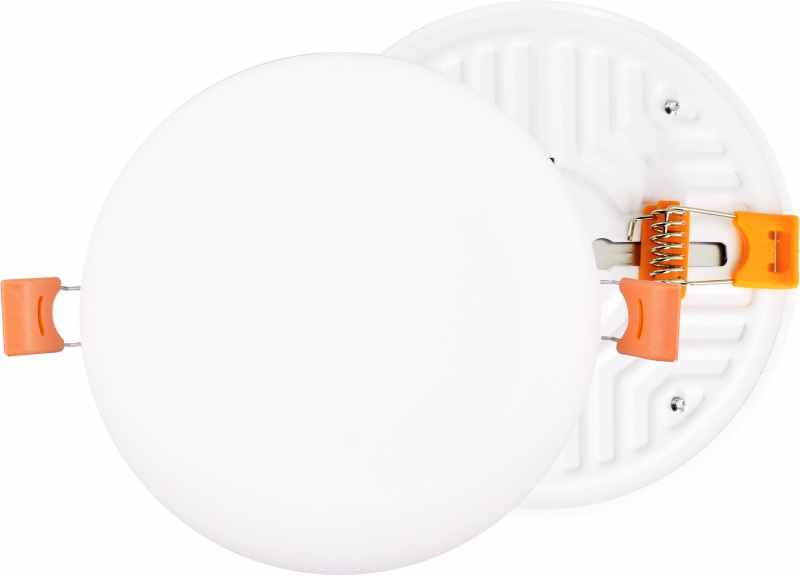

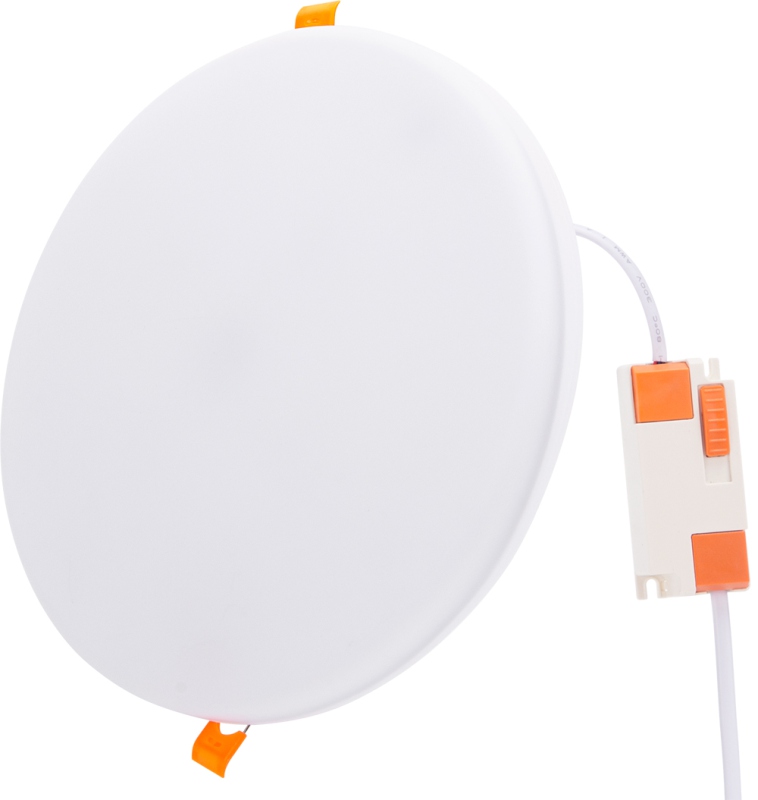

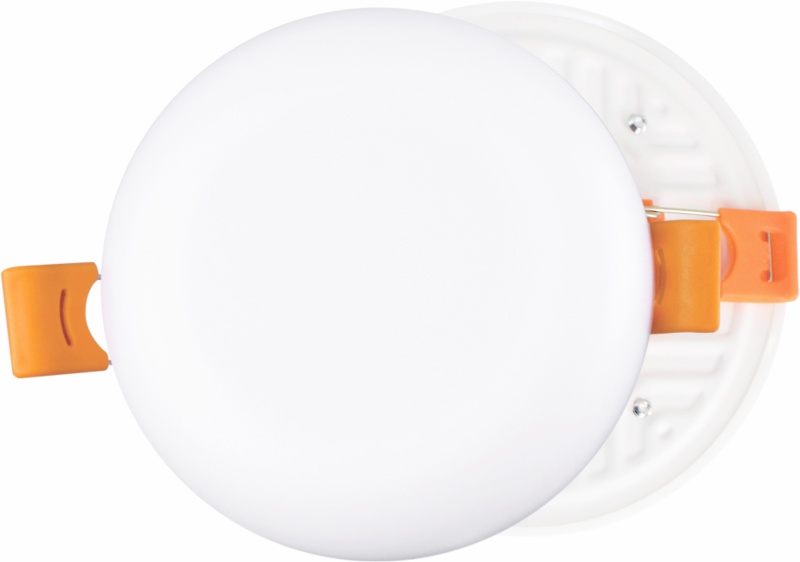

MD-PLQ47 Series

MD-PLQ4710RMD-PLQ4716RMD-PLQ4724RMD-PLQ4736R
Voltage: AC220-240V 50/60Hz
Power: SMD 10W
CRI: ≥70
Luminous: 900Lm
Beam Angle: 180°
LED Type: SMD
Body Size:Ф100x35mm
Hole Size: Ф40-90mm
PF: >0.5
Surge: 1.5KV
Material: Aluminum+PC
Voltage: AC220-240V 50/60Hz
Power: SMD 16W
CRI: ≥70
Luminous: 1600Lm
Beam Angle: 180°
LED Type: SMD
Body Size:Ф119x35mm
Hole Size: Ф40-105mm
PF: >0.5
Surge: 1.5KV
Material: Aluminum+PC
Voltage: AC220-240V 50/60Hz
Power: SMD 24W
CRI: ≥70
Luminous: 2400Lm
Beam Angle: 180°
LED Type: SMD
Body Size:Ф168x35mm
Hole Size: Ф40-155mm
PF: >0.5
Surge: 1.5KV
Material: Aluminum+PC
Voltage: AC220-240V 50/60Hz
Power: SMD 36W
CRI: ≥70
Luminous: 3600Lm
Beam Angle: 180°
LED Type: SMD
Body Size:Ф233x35mm
Hole Size: Ф40-210mm
PF: >0.5
Surge: 1.5KV
Material: Aluminum+PC
QuotationPrint
型号参数报价表
Model NOParameterQuotation

Product Advantages

Promotion Introduction

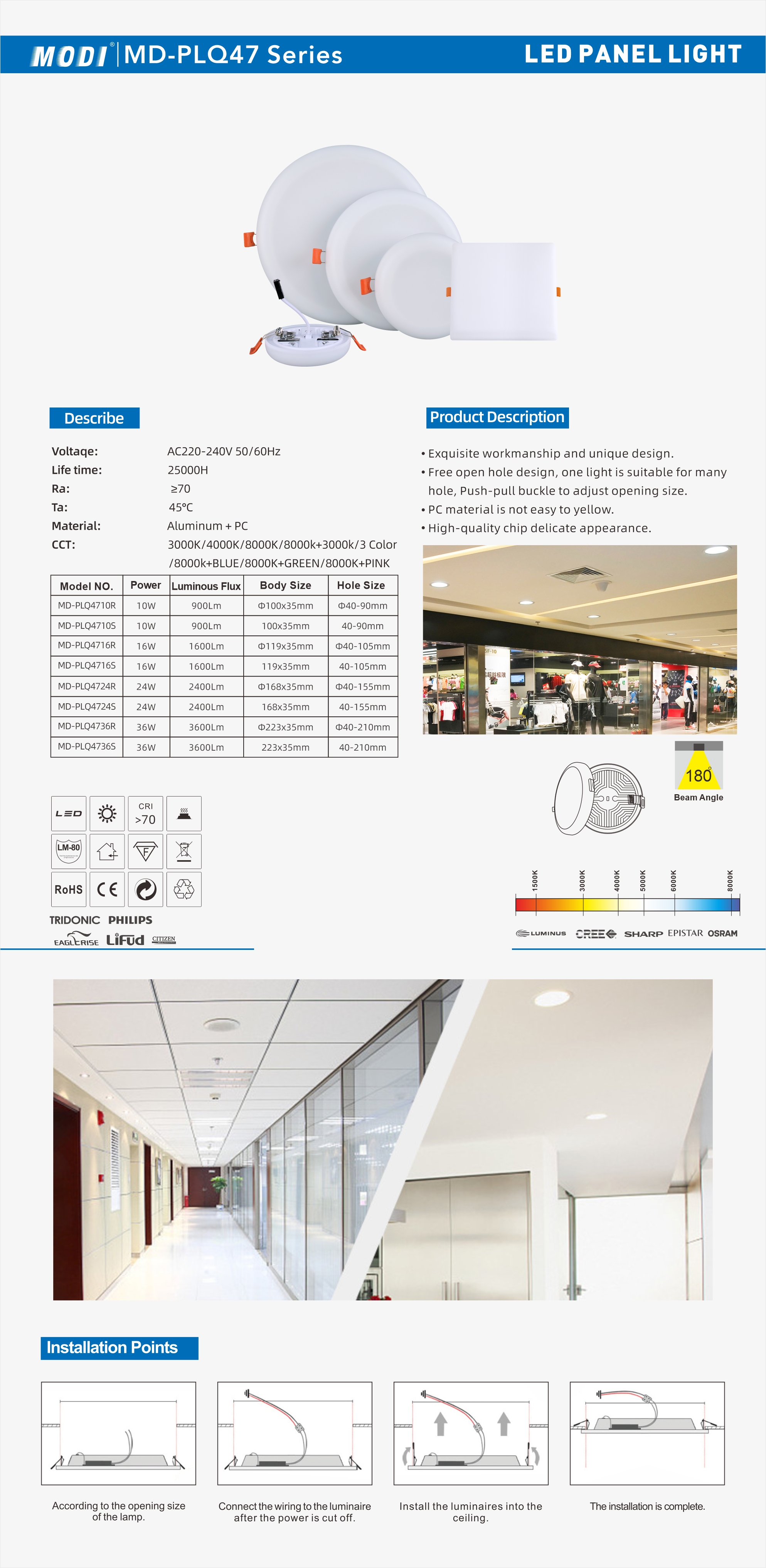

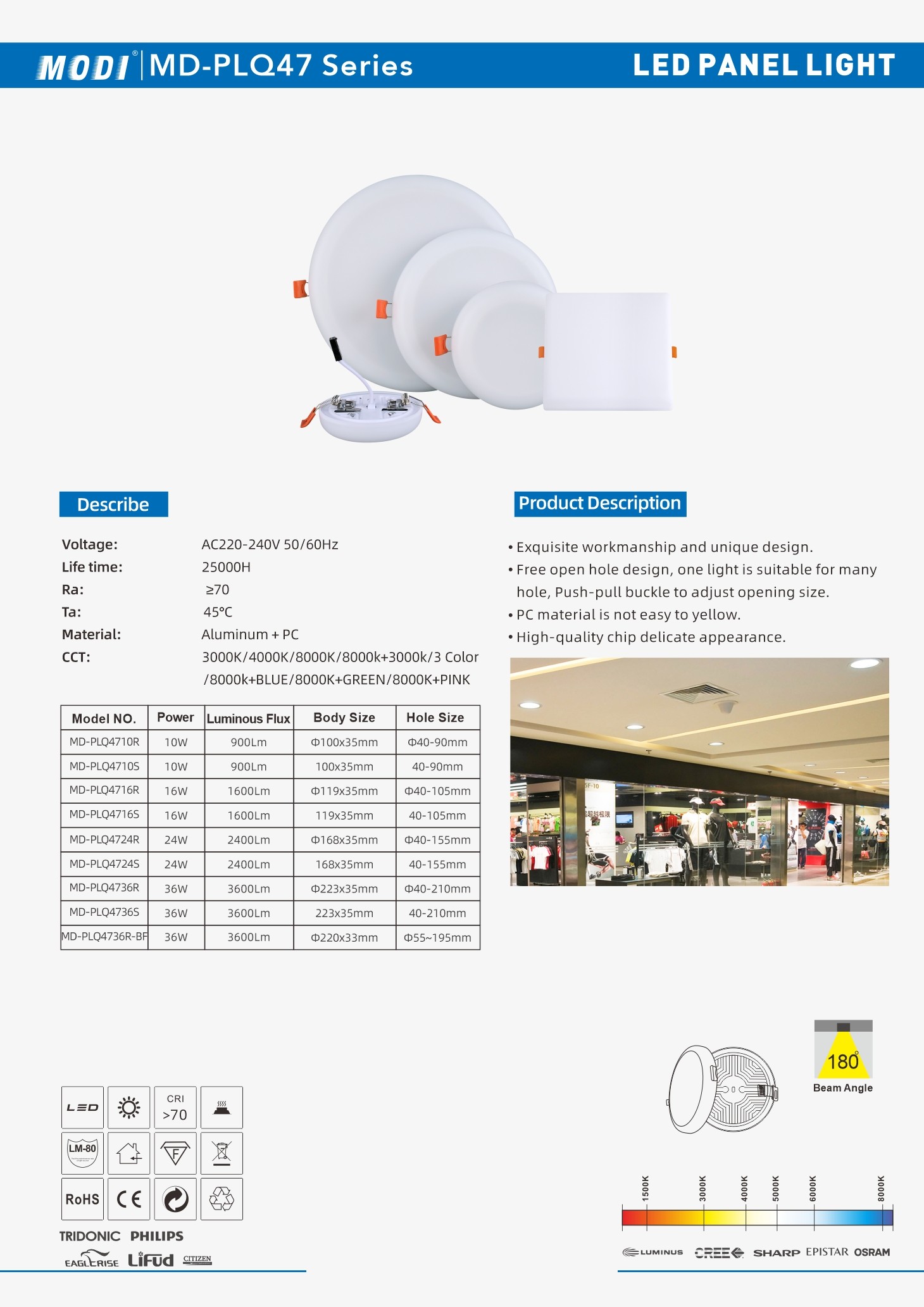

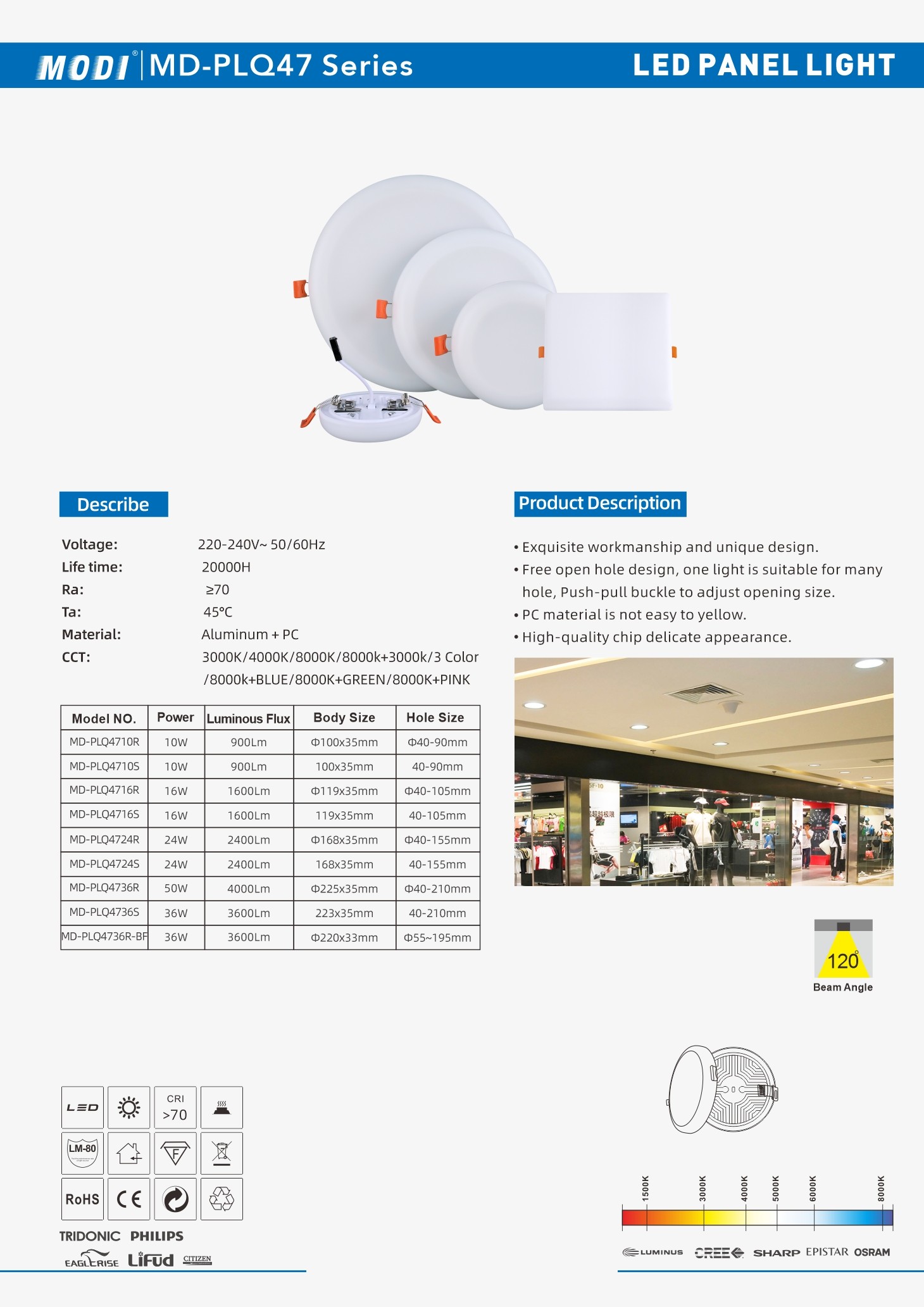

MD-PLQ47 系列 单页.jpg

Download

0
Quotation All Quotation
Submit Return
